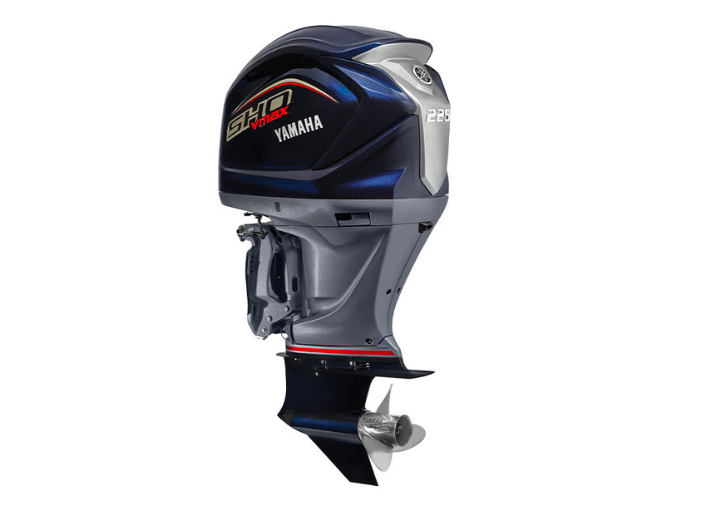

2017 Yamaha VF225 LA VMAX SHO Outboard Motor For Sale

Buy the 2017 Yamaha VF225LA VMAX SHO 225HP outboard motor. 20″ shaft, 4.2L V6, high-output 4-stroke. Clean, powerful, and ready to run!

For those ready for a whole new game

For years, bass anglers championed the two stroke, sacrificing fuel economy and power for performance. That is, until Yamaha unleashed the world’s first 4.2L Super High Output four stroke for bass boats. The four stroke V MAX SHO® offers all the advantages of a two stroke in a clean burning, fuel efficient four stroke. It’s a level of performance that pro anglers have always wanted on the tournament circuit. And it’s officially put two strokes on notice.

2017 Yamaha VF225 LA VMAX SHO Outboard Motor

• Super High Output 60° V6 Design

• Mechanically Controlled Four Stroke V6 Outboard

• Plasma-Fused Sleeveless Cylinders

• Variable Comshaft Timing

• Long Track Induction System

• Electronic Multi-Point Precision Fuel Injection

• Ignition Knock Sensor

• 4 Large Radius Valves Per Cylinder

• High Intake Valve Lift

• Double Overhead Camshafts

• In-Bank™ Exhaust

• Exhaust Pressure Reduction System

• Compact, Lightweight Design

2017 Yamaha VF225 LA VMAX SHO Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name VF225

Trim Name LA

Generic Type (Primary) Four Stroke

Engine

Engine Type V6 (60º)

Engine Power 225 HP @ 5500 RPM

Alternator (Output): 50 Amp (46 AMP @ 1000rpm)

Displacement 4.2L (254 ci)

Gear Ratio (Primary) (21:12) 1.75:1

Lubrication Wet sump

Fuel Type Induction: DOHC Fuel Injection VCT

Ignition System: TCI Micro Computer

Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)

Fuel Type (Recommended Filtration): Yamaha 10 Micron Fuel/Water Separating Filter

Capacities

Oil capacity 6.7L (7.1 qt) with filter

Spark Plug

Spark Plug LFR6A-11-00-000

Range

Note Full Throttle RPM Range: 5000-6000 rpm

Dimensions

Length Shaft: L= 20″

Bore 3.78 in. (96 mm)

Stroke 3.78 in. (96 mm)

Weights

Dry Weight 505 lb (229 kg) VF250LA

Features

Exhaust Through Propeller

Features Degree of Tilt: 66° | Degree of Trim: -4° through +16°

Note Ethanol Blend Limit: 10% Maximum

Starter Electric w/PTT

Note Gear Shift: Forward, Neutral, Reverse

Features C.A.R.B. Rating: 3 Star

Cooling Water/Thermostatic Control

Steering Angle Maximun: 35° from center, either direction

Intake Design Single Throttle Valve

Note Mounting Centers: 28.6″

Compression Ratio 10.3:1

Warranty

Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial
